Bearings to suit Bosclip Lawn Edgers 608 2RS, 608 ZZ, 627 ZZ, 609 2RS, 629 2RS
Identify your model from the photos below.
Its recommended to change both front and rear bearings every 2-3 years.
If you can easily move the shaft forwards and backwards with the motor fully assembled you may also need to replace the bearing tension washer behind the rear bearing (part number: 179)
Model: CAT 77 early (photos above)
Front: 608 2RS (inner diameter 8mm) (outer diameter 22mm)

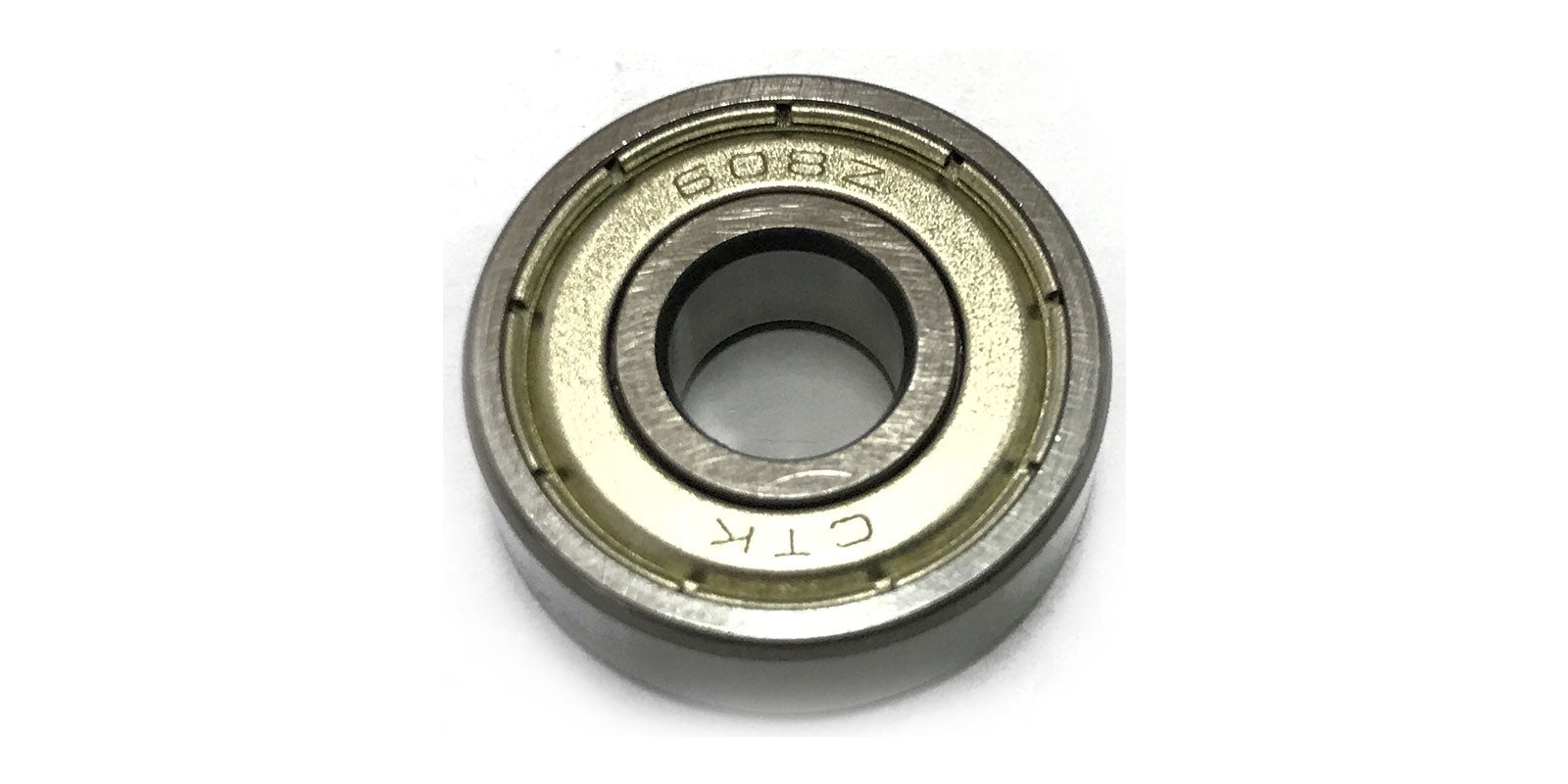

Rear: 608 ZZ (inner diameter 8mm) (outer diameter 22mm)
Model: CAT 77 MID (photos above)
Front: 608 2RS (inner diameter 8mm) (outer diameter 22mm)
Rear: 608 ZZ (inner diameter 8mm) (outer diameter 22mm)
Model: CAT 77 Late & 2001 (photos above)
motor cover length 117mm
Front: 609 2RS (inner diameter 9mm) (outer diameter 24mm)
Rear: 627 ZZ (inner diameter 7mm) (outer diameter 22mm)
Model: WS 2001 & BAP ELE 002 (photos Above)
motor cover length 85mm
motor cover may be green or silver
Front: 629 2RS (inner diameter 9mm) (outer diameter 26mm)
Rear: 627 ZZ (inner diameter 7mm) (outer diameter 22mm)
OR
608 ZZ (inner diameter 8mm) (outer diameter 22mm)
Please check rear bearing size before ordering
